New Interactive Map Featuring Potentially Buildable State-Owned Land Near Transit Stops Across Maryland
By Cole Shultz, NCSG Graduate Assistant
Click here to view the interactive map.
Introduction
Just as in the rest of the country, Maryland is experiencing a housing crisis as home and land prices continue to rise faster than incomes. This is caused by the shortage of homes available to residents at all incomes, particularly those with low or very low incomes. This challenge is further compounded by the necessity of a car to access jobs and housing. This auto-oriented environment leads to houses and amenities being widely dispersed, resulting in increasing carbon emissions, environmental degradation, and traffic deaths. The low-density character of housing development has also been associated with higher housing costs, making the affordability crisis worse. Given these myriad issues, planners and state agencies have an understandable interest in finding strategies to rapidly build housing without adding to an over-stretched transportation system.
Transit-oriented development (TOD) is one such strategy, presenting a viable alternative to sprawl by pairing denser, more affordable housing with convenient access to public transportation. Typically occurring within a 10-minute walkshed, or approximately 1/2 of a mile, from a transit station, TOD is characterized by mixed-use, dense development which offers residents a variety of transportation options alongside reduced traffic congestion, economically revitalized neighborhoods, and increased affordable housing production, amongst other benefits. TOD has been remarkably successful in the DC metro area, with the Rosslyn-Ballston corridor along the WMATA rail network in Arlington, Virginia having contributed to over 25% of the County’s entire growth between 1990-2000, and currently being home to over 47,000 people and 42 million square feet of commercial space.

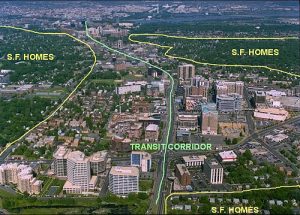

Image 1: Aerial View of Rosslyn-Ballston transit corridor. Sourced from the Congress for the New Urbanism (CNU)
Accordingly, it is a well-understood priority by the State of Maryland to advance TOD, and this requires understanding the existing land use character surrounding transit stations in the state. Our research at NCSG has accomplished just that, by using the State Department of Assessments and Taxation (SDAT)’s PropertyView database to create an interactive map of all state-owned land within a 1-mile radius of a transit station. We find significant potential for new development, particularly in the suburban counties of Washington, Montgomery and Prince George’s, owing to that region’s robust rail system, WMATA. We also find notable development potential in Baltimore City and County through partnering with MDOT along the Baltimore Metro Subway and Light Rail Lines.
Methodology
This project originally began with an exploration of the State’s PropertyView System, which laid the groundwork for much of our subsequent analysis. This first step in this exploration was the creation of 1-mile buffers around the 111 different rail transit stations in Maryland, including 26 on the WMATA system, 38 on MARC, 14 on the Baltimore Metro, and 33 on the Baltimore Light Rail, using ArcGIS Pro. Within those buffer zones, properties were then identified and their owners classified to understand land distribution. Properties not determined to belong to either federal, state, county, or municipal governments were excluded at this stage, using listed owner names in the original dataset. Land use code descriptors were also used to further refine the ownership dataset. We also excluded properties with certain listed uses, such as airports, parks, and schools, as those are unlikely to be redeveloped for additional housing or converted from their existing uses. Our full list of codes used for defining target parcels can be found in the data dictionary, and is based off of the SDAT Exemption Class code. Next, the presence of duplicate parcels and layers was handled by deleting parcels with shared IDs, and inconsistent ownership naming conventions, such as the 14 different listings of the Washington Metropolitan Area Transit Authority, WMATA, was handled through the reclassify tool of ArcGIS Arcade. Finally, the various separate layers for each county were merged to create a single layer, and public parking lots not previously identified were found and merged to this master layer.

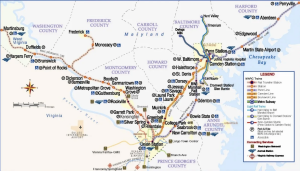

Image 2: Comprehensive Map of Maryland Rail systems. Sourced from Maryland Department of Transportation (MTA).
The creation of the interactive map necessitated the use of ArcGIS Experience Builder, and it possesses many features designed for an intuitive user interface. The attribute table was reorganized to only include relevant fields, such as Owner Name, Address, and County. A Filter by County tool was added, which allows users to zoom into and select target counties. This tool also affects a pie chart, which is displayed alongside the layer’s attribute table and can be seen when clicking on the bottom panel of the web map. This pie chart displays the acreage within a county, or the State as a whole, organized by owner, and provides a useful summary for ownership trends across the State. The map also possesses various other layers, such as buffers, county and transit lines, and flood zones, designed to enhance user understanding and provide a more robust picture of the state of public land ownership near transit in Maryland. Lastly, the map is able to be exported and printed in a Letter ANSI A Landscape format, so it can be shared physically as well as digitally.
Preliminary Findings
The most significant finding from this project was that WMATA owns a sizable majority (65%) of public land within our transit buffer zones, indicating that the suburban counties of Washington, Montgomery and especially Prince George’s, have the greatest potential for transit-oriented development. Indeed, WMATA owns more land in Prince George’s County (754 acres) than all other public entities combined own across all counties, including Prince George’s (593 acres). This is apparent when looking at stations such as Morgan Boulevard on the blue line, Branch Avenue on the green line, and New Carrollton on the orange and future purple lines, which are surrounded by potentially developable WMATA land.
Montgomery County, while not possessing the same extent of public land near transit as Prince George’s, still has significantly more public land near transit than any other county in the State. Almost 80% of that land (370/463 acres) is owned by WMATA. This indicates that Montgomery County should also pursue partnerships with the transportation authority to bring in new development on those stations, which can increase the availability and affordability of housing within the region. The recent announcement of new development on the North Bethesda metro station, along the Red Line, represents a positive development pursuant to this goal.
Image 3: North Bethesda Metro Station Redevelopment Concept Art. Sourced from Washington Metropolitan Area Transit Authority (WMATA).
The Baltimore region also has significant potential for transit-oriented development, with the City having approximately 14 more acres of land available than Baltimore County (100 vs 86). Both governments should seek to partner with MDOT to pursue redevelopment, as it owns over 80% of the land available for redevelopment in the combined region. Baltimore City currently has provisions in its zoning code explicitly designed for TOD, and these zones can be applied alongside other incentives to spur new activity and housing near stations in the downtown core of the city.
Next Steps
While the work done so far represents a significant improvement in our understanding of the feasibility and availability of publicly-led transit-oriented development, more research is needed to ensure the viability of these sites. We are currently working on classifying these parcels as being partially, wholly, or not at all in a floodplain, as this characteristic is critical in determining the true viability of redevelopment projects. Likewise, we are exploring a classification of these parcels by zoning category to complement our ownership analysis. Zoning is the legal framework in which development occurs, and so parcels that are not zoned for TOD are unable to be fully utilized. We will also identify the distribution of this land by Maryland’s legislative boundaries. We will continue to revisit parcel identification and classification, as it is possible that our reliance on the SDAT PropertyView system has led to some parcels being accidentally excluded from our analysis, and others being incorrectly included.
